Isotherm Compact GE150 Classic Air Cooled Marine Refrigeration - DIY Build In Kit - Flat Evaporator Plate

 PLEASE CHECK STOCK BEFORE ORDERING 1300 668 293

Isotherm Compact GE150 Classic Air Cooled Marine Refrigeration (U150x000P11111AA) 4G150BA1

DIY Build In Kit – Flat Evaporator Plate 386 x 361mm

Suits Fridge to 150 Litre or Freezer to 50 Litre

Reliable, Efficient BD35F Danfoss Compressor

12 to 24 Volt - Fan Cooling

Suitable for Boats-Caravans-Motorhomes and RVs

These 12 volt to 24 volt fan cooled refrigeration units are suitable for mounting in new or existing ice boxes. The Isotherm Classic Compact Air-Cooled systems offer an effective and economical solution for many refrigeration applications. The fan cooled compressor can be mounted up to two meters away from the evaporator plate (which mounts  in your fridge box). Air cooling can be very efficient when they are properly designed and well ventilated. Air-cooled systems are also easy to install and maintain. The box style ‘O’ evaporators provide an internal freezer compartment as well as cooling for the entire refrigeration compartment. Units are supplied pre-gassed re-open able quick fit connectors for ease of installation. Flat evaporators can be carefully formed with no less that a 50mm radius at each bend to suit box size. Features low voltage cut off and radio interference suppression fitted as standard. The temperature is adjusted by a rotary thermostat which incorporates an on/off switch. Connection of the evaporator plate to the compressor requires only a 30mm hole to be drilled in the ice box compartment wall. Utilises R134A ozone friendly refrigeration gas.

Features:

• Fridge or Freezer use
• Kit Includes Standard Fridge Thermostat
  • To run this unit as a freezer or dual fridge/freezer, an additional thermostat kit is required (not included in kit)
• 12/24 V Danfoss/Secop compressor
• Universal kit AC/DC optional for a complete power supply compatibility (12/24 V, 230/115 V and 50/60 Hz)

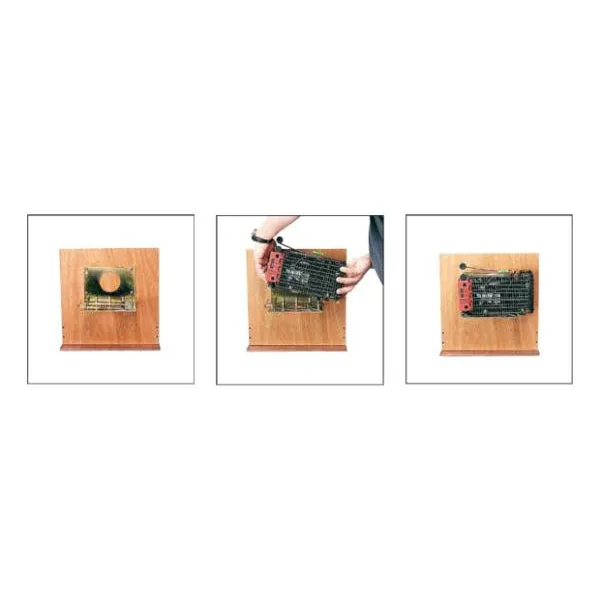

• Easy installation thanks to “click-on” system

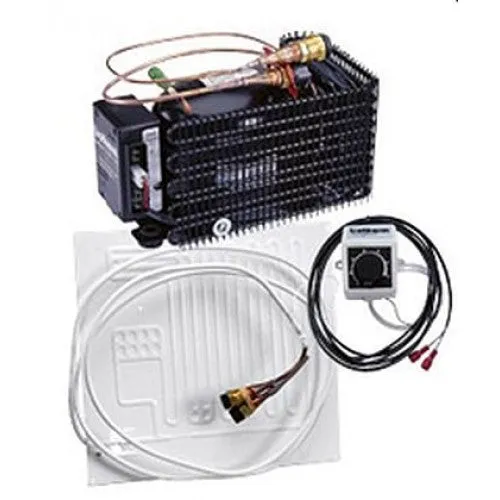

Kit Includes:

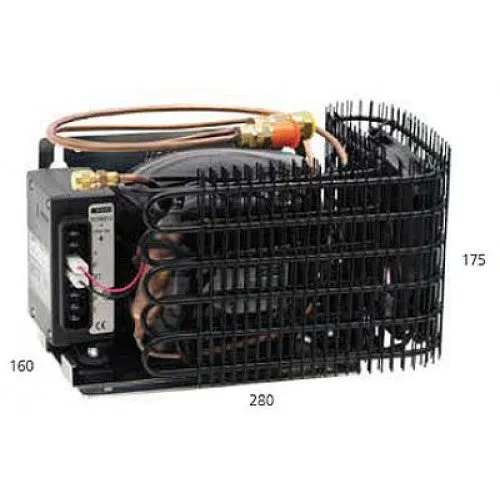

• Air Cooled Compressor Unit which can be mounted up to 2 meters from the evaporator
• Pre gassed copper lines  with Quick Connectors
• Standard Refrigerator Thermostat

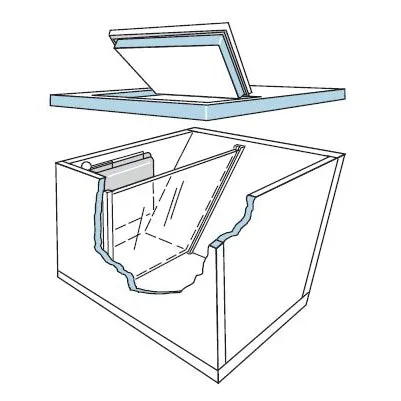

• Evaporator plate - which can be bent to shape



Summary Information:

• Classic Compact Systems - 150/50L Volume Fridge/Freezer
• Evaporator Type: Flat
• Compressor Type: BD35F
• Av. Power** Consumption: 0.7
• Max. Power Consumption: 3.5
• Compressor Dimensions L x W x H: 270mm x 160mm x 155mm

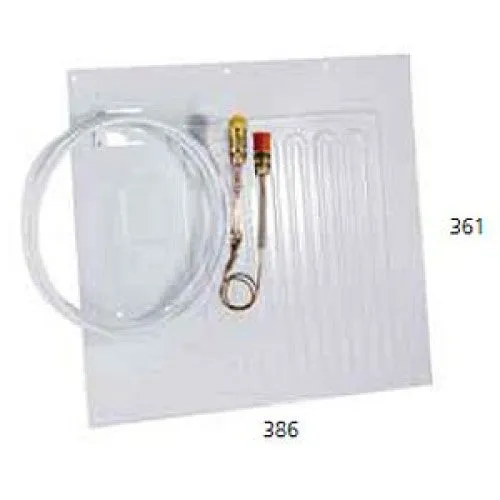

• Evaporator Dimensions L x W x H: 386mm x 361mm
• Weight: 9kg

We recommend to reduce the box volume by 10-20 %, in tropical conditions.
Specification changes may be made without prior notice.
