- Premium Material: 2217 motor kit is made of premium quality material, and with 2217 KV1250 motor 8060 propeller steering engine 40A ESC, can provides your RC helicopter better performance.
- High Torque: The SG90 9G micro servo weighs only 9g and has a torsion of 1.5‑1.7kg/cm (4.8V‑6V). It guarantees efficient , allowing your RC to move quicker and smoother even on challenging terrains.
- High-Performance ESC: 40A ESC with security arming function, throttle calibration function, support multiple program methods. Enjoy long-lasting RC fun without worrying about draining the battery too soon.
- High Compatibility: 2217 motor kit is compatible with lithium batteries(not included). The time can be changed to suit different brushless motors. And it ensures energy-efficient. It ensures that your RC get more power while consuming less energy.
- Mulitiple Function: Comprehensive , features low pressure cut‑off /overheat /throttle loss . And it can help improve the overall performance.
Specification:
Item Type: 2217 Motor Kit
Material: Metal Plastic
SG90 9g Servo Parameters:
Size: Approx. 21.5 x 11.8 x 22.7mm/0.85 x 0.46 x 0.89in
Weight: Approx. 9g/0.32oz
No-Load Speed: 0.12s/ 60 Degrees (4.8 V)
Locked-Rotor Torsion: 1.5-1.7kg/cm (4.8V-6V)
Working Temperature: -30- 60℃
Dead Zone Setting: 5 Microseconds
Working Voltage: 4.8V-6V
2217 Motor Specifications:
Size: Approx. 27.8 x 32mm/1.1 x 1.3in
Shaft Diameter: Approx. 4 mm/0.16in
Kv: 1250kv
40A ESC Specifications:
Plug: XT60
Continuous Current: 40A
Peaking Current: 55A (10S)
Power Input: 2-4 Lithium Batteries (Not Included)
BEC Output: 5V at 3A (Linear Regulator Mode-Linear Mode)
Maximum Speed: 210,000 Rpm for 2-Pole Motor, 7000 Rpm for 6-Pole Motor, 35,000 Rpm for 12-Pole Motor
Application: Suitable for RC remote control helicopter

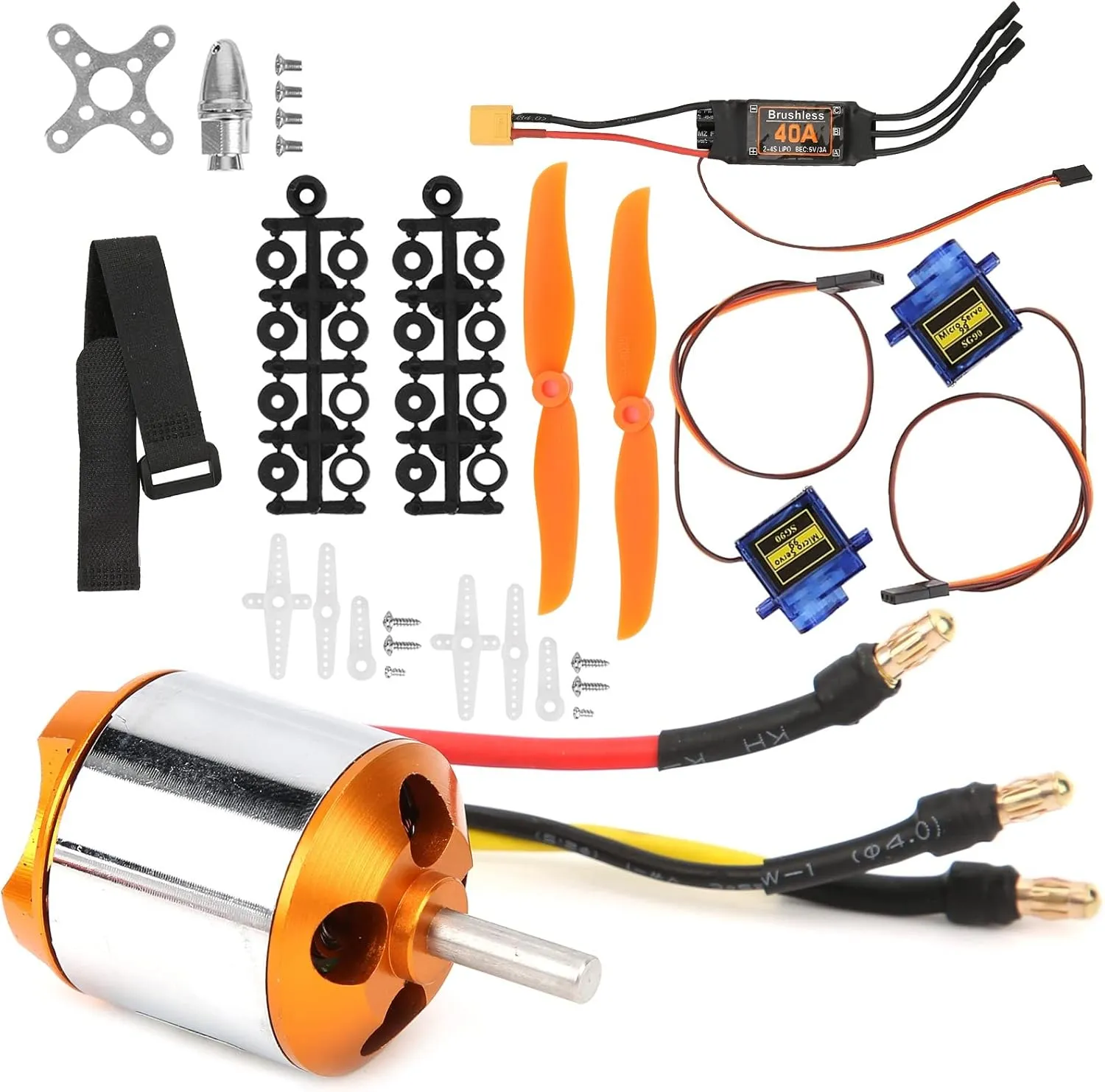

Packing List:
1 x Motor
2 x Propeller
2 x Steering Engine
1 x ESC(Not Included Battery)
1 x Motor Base
1 x Coniform Head
6 x Servo Arm
1 x Tie
10 x Screw
2 x Rows of Propeller Washer
